Jablotron JK-107KRY PLUS: GSM+LAN wireless Alarm Kit
The Jablotron JK-107KRY PLUS an excellent kit including radio module (R), GSM, GPRS and LAN.
+ MyCredex Priority Support = LifeTime online support service
The JK-107KRY kit offers flexible setting and allows easy protection for small premises, bigger family houses, offices and companies. It is equipped with a JA-110R radio module. The desired settings programmed by F-link SW.

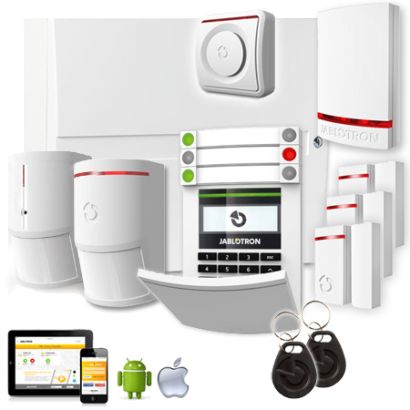

Jablotron 107KRY GSM + LAN PLUS kit contains
► JA-107KRY - control panel, check the link JA-106KR for more information (size 36 x 30 x 10,5 cm);
► JA-154E - wireless keypad, check the link JA-154E for more information;
► JA-192E - 2x control segment, check the link JA-192E for more information;
► JA-186JW - remote control, check the link JA-186JW for more information;
► JA-150A - wireless indoor siren, check the link JA-150A for more information;
► JA-180A - wireless outdoor siren, check the link JA-180A for more information;
► JA-150P - wireless movement detector (PIR), check the link JA-150P for more information;
► JA-180PB - wireless PIR with glasbreak detection, check the link JA-180PB for more information;
► JA-JA-151M - 3x wireless door/window contact, check the link JA-183M or JA-151M for more information;
► JA-192J - 2x key-tag - check the link JA-192J for more information;
► SA-214 - battery, check the link SA-214 for more information.
The JA-107KRY offers:
- up to 230 wireless or BUS hardwired zones
- up to 600 user codes
- up to 15 sections
- up to 128 programmable outputs
- 64 independent calendars
- system reports to 50 users by SMS
- 5 ARC settings
- 5 selectable reports to ARC
- LAN module
The panel has a built-in GSM / GPRS / LAN Messenger, which allows voice, SMS or GPRS communication with end users or ARC centers. It is equipped with a 1 GB memory card for storing event data, voice messages, storing images, etc.
The JA-107KRY control unit includes:
- 2 x BUS terminal
- 1 x terminal for the built-in radio module (JA-111R - included)
- 1 x terminal for the built-in GSM module (JA-192Y - included)
- 1 connector for the LAN router
Specifications JA-107K
Power source | 230 V / 50 Hz, max. 0.1 A, security class II |
---|---|
Backup battery | 12V; 2.9Ah (2.2 to 7Ah) |
Maximum time needed for battery recharge | 72 h |
Max. continuous control panel current output | 2000 mA permanently 3000 mA for a period of 60 min. (max. 2000 mA to one bus) |
Max. continuous current output for 12 hour backup | 125 mA with a 2.6Ah battery |
Max. number of enrolled devices | 230 |
LAN communicator | yes |
Battery | A type (EN 50131-6) |
QUAD-BAND GSM communicator | 850/900/1800/1900MHz |
Operating frequency (with the JA-110R module) | 868.1 MHz ISM band |
Invalid code-entries exceeded | After 10 incorrect code entries |
Event memory | approx. 1 million of the latest events including date and time |
Security rating | 2 according to EN 50131-1, EN 50131-3-6, EN 50131-5-3 |
Operating environment | Class II indoor general (-10 to +40°C), according to EN 50131-1 |
Radio transmission conformity | ETSI EN 300220 (R module), ETSI EN 301 419-1, EN 301 511 |
EMC conformity | EN 50130-4, EN 55022, ETSI EN 301 489-7 |
Security conformity | EN 60950-1 |
Can be operated according to | ERC REC 70-03 |
CLIP protocol (caller ID + SMS) | ETSI EN 300 089 |
Compare the 107KRY with the 103KRY control panel
JA-107K |
Comparison control panels of the JA-100 alarm system |
JA-103K |
868 MHz | Communication protocol | 868 MHz |
230 | Number of wireless or BUS hardwired zones | 50 |
600 | Number of user codes | 50 |
15 | Number of sections | 8 |
128 | Number of programmable outputs | 32 |
64 | Number of independant calenders / timers | 20 |
50 | Number of users system reports to by sms | 8 |
360 x 300 x 105 mm | Dimensions | 258 x 214 x 77 mm |
seperate | Build in GSM / GPRS communicator | yes |
yes | Built in LAN communicator | yes |
yes | (MyJablotron) App + internet (Web-Self-Service) | yes |
Private / Business |
Use |
Private / Business |
