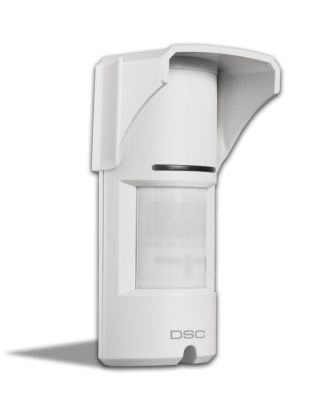

DSC LC-151 Animal Friendly Outdoor Detector

DSC LC-151 Animal Friendly Outdoor PIR & microwave detector.

Availability: In stock
SKU
LC-151
€161.72 €133.65

Exemption from VAT

Read the REVIEWS

Worldwide SHIPPING

Right of WITHDRAWAL

HelpDesk +31 20 7372 372
Mon to Sat 09:00 - 22:00

DSC LC-151 Animal Friendly Outdoor Detector

Securing property is nowadays not just behind a door. With a reliable outside detector you can detect the intruder before a building and take action. By using this dual detector, you prevent false notifications.

The detector is suitable for both private and business environments. The model is of course weather-resistant according to IP65 and can therefore be used outdoors. The detector is also provided with an EN50131 Grade 3 quality mark, making the detector suitable for use in high-risk installations.

The detector is equipped with a QUAD pir element for detecting horizontally and vertically moving people. With a detection, the microwave element is activated for a double verification, after which the detector may sound an alarm. Masking this detector is not possible without notification due to the anti-masking function in the detector.

By default, the detector is placed flat or at a 45-degree angle on a wall. Optionally, it is also possible to order mounting brackets for this model, making it possible, for example, to place the detector against a ceiling.

Specifications 231701 outdoor detector:

    • Single PIR & microwave detector
    • Animal-friendly to set up to a maximum of 55 kg.
    • Quad element Pyro sensor
    • Microwave frequency: 10,525Ghz
    • Weatherproof according to IP65
    • 15 meter detection range at 2.4 meter installation height
    • Operating temperature: -35 ° to + 55 ° C
    • Power supply: 9.6 to 16V DC
    • Overvoltage protection: 1kV per IEC61000-4-5 and EN-50130-4
    • Relay contact (load): 28V DC, 0.1A
    • Approved according to EN50131 Grade 3
DataSheet LC-151 EN.pdf
DataSheet LC-151 EN.pdf (272.05 KB) Download
LC-151 Installation Manual.pdf
LC-151 Installation Manual.pdf (1.52 MB) Download
