Jablotron JK-103KRY BASIC: 4G GSM + LAN wireless Starter Kit

Jablotron JK-103KRY BASIC: 4G GSM + LAN wireless Starter Kit 1 5 5 1

The Jablotron JK-103KRY is a basic starter kit including radio module, LAN and 4G GSM module.

Flexible settings and a wide functionality and easy to use MyJablotron App.

+ MyCredex Support = FREE LifeTime online support service

Availability: In stock

SKU

JK-103KRY-LAN

I prefer to have the following units wired: (leave unchecked for wireless)

Wired Keypad -

Wired Siren -

Qty

Discount with our B2B Partner Program

Details

The Jablotron JK-103KRY starter kit offers flexible setting and allows easy protection for small premises, bigger family houses, offices and companies. It is equipped with a JA-111R radio module and seperate JA-194Y: 4G GSM module. The desired settings programmed by F-link software.

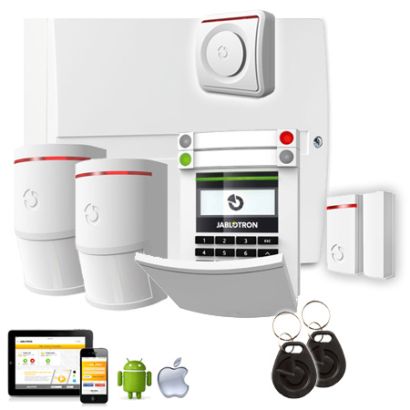

De Jablotron 103KRY Kit contains

► JA-103KRY - control panel, check JA-103KRY for more information;
► JA-154E - wireless keypad, check JA-154E for more information (incl. 1 x JA-192E);
► JA-192E - 2x control segment, check JA-192E for more information;
► JA-192J - 2x key tag, check JA-192J for more information;
► JA-152A - wireless indoor siren, check JA-152A for more information;
► JA-150P - moderne wireless movement detector (PIR), check JA-150P for more information;
► JA-151M - wireless mini magnet contact, check JA-151M for more information;
► Bateries - all batteries, check battery overview for more information;
► MyJablotron App;
► MyCredex-Support 6 days per week from 09:00 till 22:00h.

The JK-103KRY offers

up to 50 wireless or BUS hardwired zones
up to 50 user codes
up to 8 sections
up to 32 programmable outputs
20 independent calendars
system reports to 8 users by SMS
5 users have option of voice and SMS reporting
4 ARC settings

It has a built-in GSM/GPRS communicator on the board offering communication by voice, SMS or GPRS to end users or to ARC centers. It is equiped with a 1 GB memory card on the board for saving event reports, a voice menu and messages, the storage of pictures and more.

Compare the 103KRY/106KRY with the 101KR/106KR control panel

JA-101KR	JA-103KRY	Comparison Control Panels	JA-106KR	JA-107KRY
868 MHz	868MHz	Communication protocol	868 MHz	868MHz
50	50	wireless or BUS hardwired zones	120	230
50	50	Number of user codes	300	600
8	8	Number of sections	15	15
16	32	Number of programmable outputs (PG)	32	128
20	20	Number of independant calenders	20	64
8	8	No of users system reports to by sms	30	50
268x225x80	268x225x80	Dimensions in mm	360x300x105	360x300x105
Yes - 2G	Yes (4G)	GSM / GPRS communicator	Yes - 2G	Yes (2G or 4G)
Yes	Yes	Built in LAN communicator	Yes	Yes
Yes	Yes	MyJablotron App (Web-Self-Service)	Yes	Yes

ncp insert certifications

Specifications JA-103K

Control panel power supply	~ 110 – 230 V/50 – 60 Hz, max. 0.28 A with fuse F1.6 A/250 V, Protection class II
Back-up battery	12 V; 2.6 Ah (lead gel)
Maximum battery charging time	48 h
BUS voltage (red - black)	12.0 to 13.8 V
Maximum continuous current consumption from the control panel	1000 mA
Max. continuous current consumption for back-up 12 hours	Without GSM communicator	LAN – OFF: 115 mA LAN – ON: 88 mA
	With GSM communicator	LAN – OFF: 80 mA LAN – ON: 53 mA
Max. continuous current consumption for back-up 24 hours	Without GSM communicator	LAN – OFF: 21 mA
	With GSM communicator	LAN – OFF: 17 mA
Maximum number of devices	50
LAN communicator	Ethernet interface, 10/100BASE
Dimensions	268 x 225 x 83 mm
Weight with/without AKU	1844 g/970 g
Reaction to invalid code entry	Alarm after 10 wrong code entries
Event memory	Approx. 7 million latest events, including date and time
Power supply unit	Type A according to EN 50131-6 T 031 note: In case of a main power failure is the system backed up for 24 hours and at the same time is a failure report sent to the ARC.
GSM communicator	850 / 900 / 1800 / 1900 MHz
Classification	Security grade 2 according to EN 50131-1
Operational environment	Environmental class II (indoor general) according to EN 50131-1
Operational temperature range	-10 °C to +40 °C
Average operational humidity	75 % RH, non-condensing
Complies with	EN 50131-1 ed. 2+A1+A2, EN 50131-3, EN 50131-5-3+A1, EN 50131-6 ed. 2+A1, EN 50131-10, EN 50136-1, EN 50136-2, EN 50581
Radio operating frequency (with the JA 11xR module)	868.1 MHz
Radio emissions	ETSI EN 300 220-1,-2 (module R), ETSI EN 301 419-1, ETSI EN 301 511 (GSM)
EMC	EN 50130-4 ed. 2+A1, EN 55032 ed. 2, ETSI EN 301 489-7
Safety conformity	EN 62368-1+A11
Caller identification (CLIP)	ETSI EN 300 089
Operational conditions	ERC REC 70-03
Certification body	Trezor Test s.r.o. (no. 3025)
