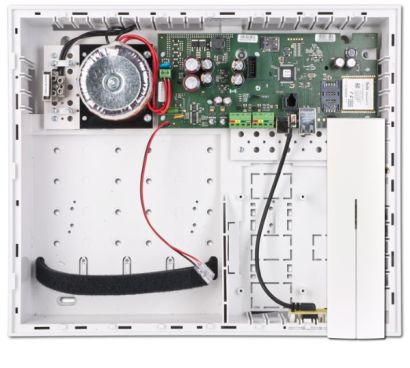

Jablotron JA-106KR GSM + LAN wireless Control Panel

The Jablotron JA-106KR is an advanced control panel of the 100 system with radio module.

Size: 360 x 300 x 105mm

Availability: In stock
SKU
JA-106KR+ANV-SK2X-2M

Exemption from VAT

Read the REVIEWS

Worldwide SHIPPING

Right of WITHDRAWAL

HelpDesk +31 20 7372 372
Mon to Sat 09:00 - 22:00

The JA-106KR is an advanced control panel in the JABLOTRON JA-100 alarm system. It offers fl exible setting and allows the smart protection of bigger family houses, offices or companies as well as allowing flexible solutions for apartment complexes, office buildings or companies with a need to use many sections in the system. The desired settings and the size of the system is programmed by the F-Link software.


The JA-106K offers:

  • up to 120 bus or wireless zones
  • up to 300 user codes
  • up to 15 sections
  • up to 32 programmable outputs
  • 20 independent calendars
  • SMS reports from the system to 30 users
  • 15 users have the option to use SMS and voice reports
  • 5 ARCs
  • 5 optional protocols to the ARC

The panel has a built-in GSM / GPRS / LAN Messenger, which allows voice, SMS or GPRS communication with end users or ARC centers. It is equipped with a 1 GB memory card for storing event data, voice messages, storing images, etc.


The control panel has:

  • two independent bus terminals for connections
  • 1 connector for the built-in radio module (JA-110R)
  • 1 connector for a PSTN communication module (JA-190x)
  • 1 connector for the LAN router

ncp insert certification

Specifications JA-106KR

Power 230 V / 50 Hz, 0.2 A max, Class II
Backup battery 12V, 18Ah (7 to 35Ah) - not included!
Maximum time to recharge the battery 72 hours
Max permanent current from the CP 1.2 A
Max continuous load with 12 hour backup 1.2 A with battery 18Ah
Max number of devices 120
LAN communicator Ethernet interface
Power supply Type A (EN 50131-6)
GSM QUAD-BAND communicator 850/900/1800/1900MHz
Operating frequency (with JA-110R) 868 MHz ISM band (included)
Alarm code blocking after 10 incorrect code entries
Event memory recent events including date and time
Security level 2 according to EN50131-1, EN 50131-3, EN 50131-6, EN 50131-5-3
Environment class II. internal (-10 to +40 ° C), EN 50131-1
Radio emissions ETSI EN 300220 (R module), ETSI EN 301 419-1, EN 301 511
EMC EN 50130-4, EN 55022, ETSI EN 301 489-7
Safety EN 60950-1
Operating conditions ERC REC 70-03
Caller ID (CLIP) ETSI EN 300 089


Compare the 106K with the 101K control panel

JA-101K
Comparison control panels of the JA-100 alarm system
JA-106K
868 MHz  Communication protocol 868 MHz
50 Number of wireless or BUS hardwired zones 120
50 Number of user codes 300
8 Number of sections 15
8   Number of programmable outputs 32
20 Number of independant calenders / timers 20
8 Number of users system reports to by sms 30
258 x 214 x 77 mm Dimensions 360 x 300 x 105 mm
yes  Build in GSM / GPRS communicator yes
yes Built in LAN communicator yes
yes (MyJablotron) App + internet (Web-Self-Service) yes
Private / SME
Use
Private / Business
