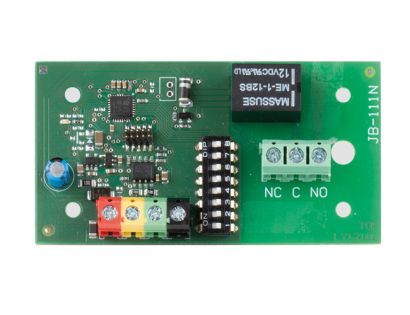

Jablotron JB-111N BUS output Relay module (max 2A, 50V AC / 60V DC)

The Jablotron JB-111N BUS signal output module PG offers a switching relay (max 2A, 50V AC / 60V DC) with NO or NC modes.

The corresponding PG output copied is set by DIP switch (one of the PG outputs PG 1 - 32).

Availability: In stock
SKU
JB-111N

Exemption from VAT

Read the REVIEWS

Worldwide SHIPPING

Right of WITHDRAWAL

HelpDesk +31 20 7372 372
Mon to Sat 09:00 - 22:00

The Jablotron JB-111N BUS signal output module PG offers a switching relay (max 2A, 50V AC / 60V DC) with NO or NC modes. The corresponding PG output copied is set by DIP switch (one of the PG outputs PG 1 - 32). The module is communicates via the digital bus, and is powered by the bus. It can be installed in JA-190PL multi-purpose installation boxes.

It is non-addressable (no position in the alarm system).


Specifications Jablotron JB-111N

Power BUS 12V (9 ... 15V)
Current consumption during backup (relay open / closed) 5 mA / 25 mA
Current consumption for choice of cable 25 mA
Relay contact:
Maximum switching voltage 50 V AC / 60V DC
Maximum switching current max.2
Minimum switching current 10 mA
Dimensions 70 x 40 x 15 mm
Classification grade 2 according to EN 50131-1, EN 50131-3
Environment EN 50131-1. general indoor
Operating temperature range -10 to +40 ° C
Complies with EN 50130-4, EN 55022
Garage Door Control JABLOTRON 100.pdf
Garage Door Control JABLOTRON 100.pdf (3.76 MB) Download
JB-111N Manual EN.pdf
JB-111N Manual EN.pdf (253.07 KB) Download
JB-111N Manual DE.pdf
JB-111N Manual DE.pdf (276.09 KB) Download
JB-111N Manual NL.pdf
JB-111N Manual NL.pdf (203.51 KB) Download
JA-111N Manual EN
JA-111N Manual EN (181.34 KB) Download
