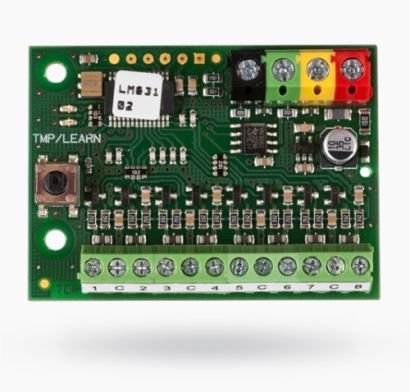

Jablotron JA-118M eight-channel BUS module for magnetic detectors

The Jablotron JA-118M BUS module for magnetic detectors - 8 inputs (EOL / wired loops: NC, repeated pulses or single balanced).

Availability: In stock
SKU
JA-118M

Exemption from VAT

Read the REVIEWS

Worldwide SHIPPING

Right of WITHDRAWAL

HelpDesk +31 20 7372 372
Mon to Sat 09:00 - 22:00

The module provides 8 inputs designed especially for connecting magnetic detectors. Wired loops can be wired as NC, single balanced by a 1kǷ resistor or loops triggered by repeated pulses (roller – windows shutters). Installation into a JA-190PL universal multipurpose box is recommended (or into a KU-68 wall –mounted universal box).


Specifications

Power from the control panel digital BUS 12 V (9 … 15 V)
Current consumption in standby mode    5 mA
Current consumptionfor cable choice 15 mA
Dimensions 50 x 38 x 14 mm
Classification Grade 2
according to EN 50131-1, EN 50131-3
Operational environment according to EN 50131-1 II. Indoor general
Operating temperature range -10 to +40 °C
Also complies with EN 50130-4, EN 55022
JA-118M Manual EN
JA-118M Manual EN (82.19 KB) Download
