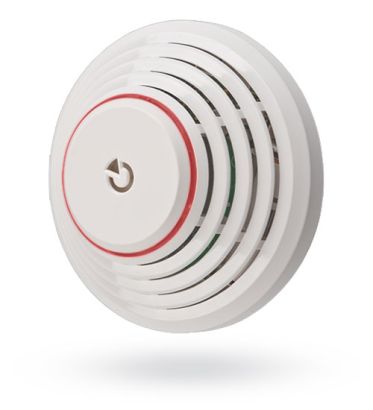

Jablotron JA-111ST BUS wired Smoke and Heat detector

Jablotron JA-111ST BUS wired Smoke and Heat detector 1 5 5 1

The Jablotron JA-111ST BUS wired smoke and temperature detector indicates fire hazard using the built-in LED indicator and acoustic signalling.

EOL - End of Life: NO LONGER IN PRODUCTION

Availability: Out of stock
SKU
JA-111ST

Exemption from VAT

Read the REVIEWS

Worldwide SHIPPING

Right of WITHDRAWAL

HelpDesk +31 20 7372 372
Mon to Sat 09:00 - 22:00

JA-111ST Bus combined smoke and heat detector

When the detector is used with inserted batteries (3x 1.5V AA) from which it can be powered, it can continue operating as a stand-alone detector when the 12 V power supply is disconnected (EN 14604).

The detector indicates fire hazard using the built-in LED indicator and acoustic signalling.

The JA-111ST consists of two independent detectors – an optical smoke detector and a heat detector. The optical smoke detector works on the principle of scattered light. It is very sensitive to large dust particles which are present in dense smoke. It is less sensitive to smaller particles generated by the combustion of liquids such as alcohol. That is why the fire detector also contains a built-in heat detector which has a slower reaction but is much better at detecting fire which generates only a small amount of smoke.

Technical specifications

Power 9 – 15 V DC / 3.5 mA (150 mA during an alarm)
3 pcs of AA 1.5 V / 2.4 Ah alkaline batteries
Typical lifetime approx. 3 years
Smoke detection optical light scattering
Smoke detector sensitivity m = 0,11 - 0,13 dB / m
pursuant to EN 14604:2005, EN 54-7
Heat detection class A1 according to EN 54-5
Alarm temperature + 60 °C to +65 °C
Operating temperature range -10 °C to +65 °C
Dimensions, weight diameter 126 mm, height 52 mm, 150 g
Conformity EN 50130-4, EN 55022
JA-111ST Manual EN
JA-111ST Manual EN (381.28 KB) Download
