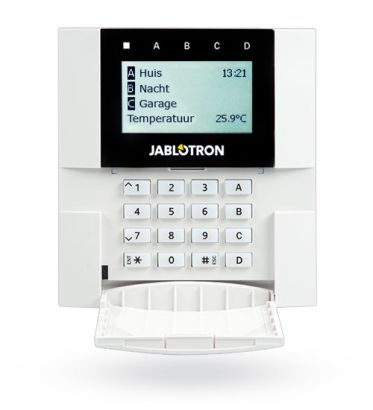

Jablotron JA-110E BUS wired Keypad with LCD and RFID

The Jablotron JA-110E is a BUS wired keypad with an LCD display, control keys and an RFID reader.

There are 4 functional keys for the control of sections, PG outputs and other functions.

NOTE: designed for the JA-100 control panel.

Availability: In stock
SKU
JA-110E

Exemption from VAT

Read the REVIEWS

Worldwide SHIPPING

Right of WITHDRAWAL

HelpDesk +31 20 7372 372
Mon to Sat 09:00 - 22:00

JA-110E BUS wired keypad

The functional keys serve as status indicators at the same time.

  • It communicates via a bus and is supplied by it.
  • It contains a wired input for the connection of a magnetic detector.
  • The keypad is addressable and occupies one position in the security system.
  • In a user-friendly menu, it enables comfortable control, management of users and detectors and browsing the event history.


Technical specifications JA-110E

Power supply 9 - 15 V, from the control panel bus
Backup (idle) mode consumption: 30 mA
Current consumption for cable selection: 110 mA
Interconnection type Data bus - not shared
RFID frequency 125 kHz
Dimensions 120 x 130 x 30 mm
Weight 217 g
Operating temperature range -10 to +40 °C
Average operating humidity 75 % RH
Environment II. indoor, general in accordance with EN 50131-1
Classification security class 2 (if set in F-Link) in accordance with EN 50131-1, EN 50131-3
It also meets the requirements of ETSI EN 300 330, EN 50130-4, EN 55022, EN 60950-1, ETSI EN 301 489
Operation conditions ČTÚ č. VO-R/10 (ERC REC 70-03)
