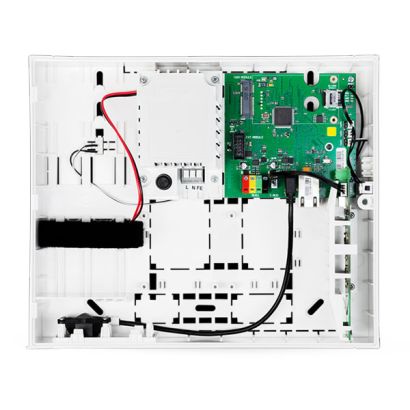

Jablotron JA-103KR Control Panel

The Jablotron JA-103KR is the popular control panel of the JABLOTRON 100+ system. It offers flexible settings and rich functionality for small premises, bigger family houses and small offices.

Size: 258 x 214 x 77 mm

Availability: In stock

SKU

JA-103KR

Partner Discount Customer Service Right of Withdrawal

Exemption from VAT Worldwide Shipping Helpdesk +31 207 372 372

Upgrade options:

None

JA-194Y LTE - 4G Data Only +

JA-194Y - 4G Module +

Qty

Do you have a question about this product?

Ask Question

Details

The new JA-103KR control panel offers flexible setting and allows easy protection for small premises, bigger family houses, offices and companies. The desired settings programmed by F-link. The JA-103KR has a build in LAN module.

The JA-103K offers

up to 50 wireless or BUS hardwired zones
up to 50 user codes
up to 8 sections
up to 32 programmable outputs
20 independent calendars
system reports to 8 users by voice and SMS
5 users have option of voice and SMS reporting
5 ARCs kunnen worden ingesteld

The JA-103K control unit includes terminals

1 x BUS terminal
1 x connector for a radio module (JA-111R)
1 x connector for a GSM/GPRS communicator (JA-194Y or JA-194Y LTE - data only)

Compare the 100K with the 103K / 107K control panel

JA-100KR	JA-103KR	Comparison Control Panels	JA-106KR	JA-107KR
868 MHz	868MHz	Communication protocol	868 MHz	868MHz
32	50	wireless or BUS hardwired zones	120	230
32	50	Number of user codes	300	600
4	8	Number of sections	15	15
4	32	Number of programmable outputs (PG)	32	128
10	20	Number of independent calendars	20	64
8	8	No of users system reports to by sms	30	50
268x225x83	268x225x83	Dimensions in mm	360x300x105	360x300x105
JA-191Y module	JA-194Y module	Build in GSM / GPRS communicator	Yes	JA-194Y module
Yes	Yes	Built in LAN communicator	Yes	Yes
Yes	Yes	MyJablotron App (Web-Self-Service)	Yes	Yes

ncp insert certification

Specifications JA-103K

Control panel power supply	~ 110 – 230 V/50 – 60 Hz, max. 0.28 A with fuse F1.6 A/250 V, Protection class II
Back-up battery	12 V; 2.6 Ah (lead gel)
Maximum battery charging time	48 h
BUS voltage (red - black)	12.0 to 13.8 V
Maximum continuous current consumption from the control panel	1000 mA
Max. continuous current consumption for back-up 12 hours	Without GSM communicator	LAN – OFF: 115 mA LAN – ON: 88 mA
	With GSM communicator	LAN – OFF: 80 mA LAN – ON: 53 mA
Max. continuous current consumption for back-up 24 hours	Without GSM communicator	LAN – OFF: 21 mA
	With GSM communicator	LAN – OFF: 17 mA
Maximum number of devices	50
LAN communicator	Ethernet interface, 10/100BASE
Dimensions	268 x 225 x 83 mm
Weight with/without AKU	1844 g/970 g
Reaction to invalid code entry	Alarm after 10 wrong code entries
Event memory	Approx. 7 million latest events, including date and time
Power supply unit	Type A according to EN 50131-6 T 031 note: In case of a main power failure is the system backed up for 24 hours and at the same time is a failure report sent to the ARC.
GSM communicator	850 / 900 / 1800 / 1900 MHz
Classification	Security grade 2 according to EN 50131-1
Operational environment	Environmental class II (indoor general) according to EN 50131-1
Operational temperature range	-10 °C to +40 °C
Average operational humidity	75 % RH, non-condensing
Complies with	EN 50131-1 ed. 2+A1+A2, EN 50131-3, EN 50131-5-3+A1, EN 50131-6 ed. 2+A1, EN 50131-10, EN 50136-1, EN 50136-2, EN 50581
Radio operating frequency (with the JA 11xR module)	868.1 MHz
Radio emissions	ETSI EN 300 220-1,-2 (module R), ETSI EN 301 419-1, ETSI EN 301 511 (GSM)
EMC	EN 50130-4 ed. 2+A1, EN 55032 ed. 2, ETSI EN 301 489-7
Safety conformity	EN 62368-1+A11
Caller identification (CLIP)	ETSI EN 300 089
Operational conditions	ERC REC 70-03
Certification body	Trezor Test s.r.o. (no. 3025)
