Jablotron CC-01 Bus cable

Jablotron CC-01 Bus cable.

- 1 x 2 x 24 AWG (0.2mm²)
- 1 x 2 x 20 AWG (0.5mm²)

Availability: In stock
SKU
CC-01

Exemption from VAT

Read the REVIEWS

Worldwide SHIPPING

Right of WITHDRAWAL

HelpDesk +31 20 7372 372
Mon to Sat 09:00 - 22:00

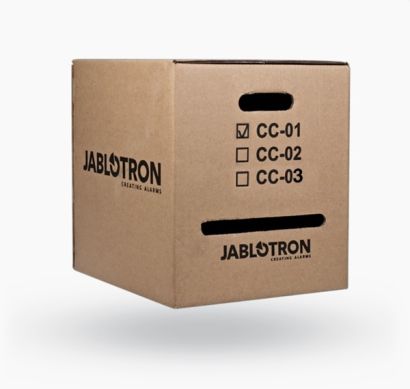

Jablotron CC-01 Bus cable unshielded EasyReel 300m.

- 1 x 2 x 24 AWG (0.2mm²)
- 1 x 2 x 20 AWG (0.5mm²)

The Jablotron CC-01 cable is designed for the main bus line, or the connection of elements with a high consumption (siren) or remote elements. The cable has 4 conductors (the colors corresponding to the bus color). The power supply conductors (black and red) have a bigger cross-section of the core (0.5 mm2) as compared to the communication conductors (0,2 mm²). The cable is supplied in packs (1 pack - 305 m).

The Jablotron CC-02 cable is designed for branches from the main bus line or for the connection of elements with a low consumption (detectors) or for short distances. The cable has 4 conductors (the colors correspond to the bus color). All the conductors of the CC-02 cable have the same core cross-section (0.2 mm²). The cable is supplied in packs per 305 m.

The Jablotron CC-03 cable is designed for the main bus line, or the connection of elements with a high consumption (siren) or remote elements. The cable has 8 conductors (8core) that are divided as follows: The power supply conductors (red and black) have a bigger cross-section of 0.7 mm2, the communication conductors (green and yellow) for the system bus and auxiliary conductors (brown and gray, white and blue) have the cross-section of 0.3 mm2. The auxiliary conductors can be used as loops of magnetic detectors or tamper contacts. The cable is supplied in packs per 250 m.
