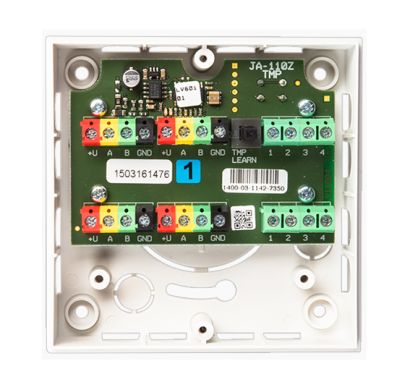

Jablotron JA-110Z Addressable BUS Terminal module

The JA-110Z BUS module is designed for branching the bus of the 100 system.

It is protected from being attacked by a pair of tamper contacts. Supplied in a suitable JA-194PL mounting box.

Size: 40 x 39 x 15mm

Availability: In stock

SKU

JA-110Z

Partner Discount Customer Service Right of Withdrawal

Exemption from VAT Worldwide Shipping Helpdesk +31 207 372 372

Do you have a question about this product?

Ask Question

Details

JA-110Z Addressable bus terminal module

In addition, the terminal module contains 2x 4 terminal boards connected in parallel to provide the possibility of interconnecting independent branches.

It occupies one position in the system.

Specifications JA-110Z

Power supply	via the control panel bus 12 V (9 - 15 V)
Current consumption in backup mode (idle)	5 mA + connected devices
Current consumption for cable selection	5 mA + connected devicess
Dimensions	76 x 54 x 30 mm
Classification according to	EN 50131-1, EN 50131-3 class 2
Environment according to	EN 50131-1 II. indoor, general
Operating temperature range	-10°C to + 40°C
in conformity with	EN 50130-4, EN 55022
