Kantech KT-PC4204, 4-Relay Module

Product Overview

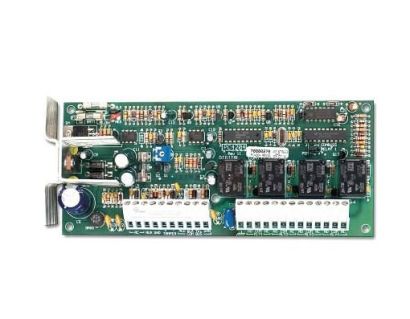

The Kantech KT-PC4204 4-Relay Module is designed for seamless integration with the KT-300 Controller. It comes complete with a circuit board, ground wire assembly, five plastic standoffs, and a 5A replacement fuse. This module operates with a low current draw of 30mA from the Combus and requires a 40VA 16V AC transformer. Compatible with a maximum 7Ah battery, it connects to the controller via a 4-Wire Combus. Features include four programmable relay contacts rated at 2A, 30V DC, an auxiliary current of 1A max, and a tamper contact input. Additionally, it can repower the Combus, enhancing system reliability. Upgrade your security setup with this versatile relay module today!

Main Features

• Includes; KT-PC4204 circuit board, ground wire assembly, 5 plastic standoffs, 5A replacement fuse
• Current draw 30mA (from Combus)
• 40VA 16V AC Transformer required
• Maximum 7Ah battery required
• Connects to the controller via 4-Wire Combus
• Four programmable relay contacts rated 2A, 30V DC
• Aux Current 1A max
• Tamper contact input
• Can be used to repower the Combus

General Information

Name: Kantech KT-PC4204 4-Relay Module for KT-300 Controller Category: Kantech, Access Control, Access Control Panels & Accessories, Control Panel Modules
