Kantech KT-MOD-OUT16, 16-Output Module

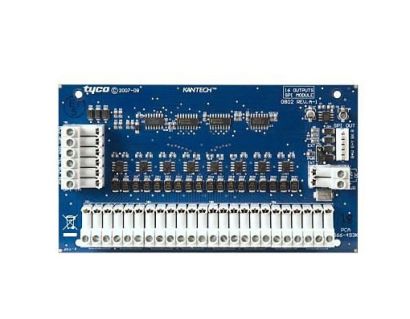

Kantech KT-MOD-OUT16 16-Output Module with SPI Cable.
Availability: In stock
SKU
KT-MOD-OUT16
Product Overview
The Kantech Input, Output, and Relay family of modules (INP16, OUT16, REL8, IO16) provides a flexible, cost-effective means to expand the Input/Output functionality of the KT-1 and KT-400 door controllers.
Features
- Provides cost-effective expansion of Input and Output capacity
- Small, modular size requires minimal panel space
- Reduces length of sensor and control wiring (IO16)
- Dedicated tamper input included on each module
- 16 terminals for use as inputs/outputs or elevator control (IO16)
- 16 LED indicators offering visual status of each terminal enable quick diagnostics and troubleshooting (IO16)
- Total of 256 inputs and 256 outputs per KT controller (IO16)
- Compatible with KT-1 (IO16 only) and KT-400 door controllers
- Fully compatible with EntraPass security management software (IO16 v8.10 and higher)
What’s Included
KT-MOD-IO16 Output Expansion Module 40 cm SPI Cable
Main Features
> 16-zone output;
> Low current module, 5 to 24V DC, 4 to 750 mA
> Dedicated tamper input included on each module
General Information
Name: Kantech KT-MOD-OUT16 16-Output Module with SPI Cable, Compatible with KT-400
Category: Kantech, Access Control, Access Control Panels & Accessories, Control Panel Modules
UPC Code: 840456129807
