Jablotron JB-118N eight-channel BUS output module

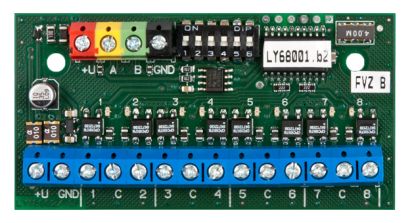

The JB-118N eight-channel output module provides eight galvanic isolated outputs. For example, it can be used to control optical indicating elements, radio communicators or power relays.

Check our BLOG  Jablotron 100 Fibaro connection for instructions and tips.

Availability: In stock
SKU
JB-118N

Exemption from VAT

Read the REVIEWS

Worldwide SHIPPING

Right of WITHDRAWAL

HelpDesk +31 20 7372 372
Mon to Sat 09:00 - 22:00

The JB-118N eight-channel output module provides eight galvanic isolated outputs in all. For example, it can be used to control optical indicating elements, radio communicators or power relays.

The unit is designed for installation in a JA-190PL multi-purpose box or on a DIN board. The outputs are isolated from the bus. The setting is done via a DIP switch.

It does not occupy any position in the system.


Connecting Fibaro Z-Wave protocol

Check our BLOG  Jablotron 100 Fibaro connection for instructions and tips.


Specifications JB-118N

Power via bus 12V (9 ... 15V)
Current consumption in standby output (open / closed) 5 mA / 10 mA
Current consumption for choice of cable 10mA
Maximum output current of + U (electronic fuse) <100mA (current calculation necessary to add all attached devices)
Dimensions 77 x 40 x 15 mm
Classification grade 2 according to EN 50131-1, EN 50131-3
Environment according to EN 50131-1 II. general indoor
Operating temperature range -10 to +40 ° C
Complies with EN 50131-3, EN 50130-4 ed. 2+A1, EN 55032, EN 50581
