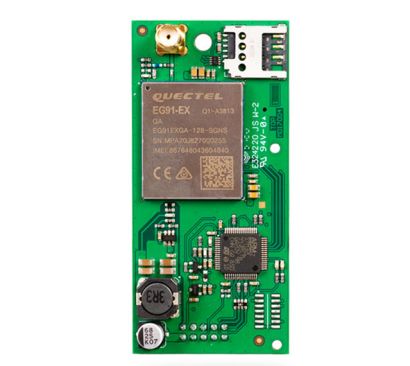

Jablotron JA-191Y LTE 4G GSM communicator

The Jablotron JA-191Y LTE 4G GSM communicator module is designed for the JA-100K, JA-101K and JA-106K alarm control panels.

It serves as a backup and extension of the LAN communicator.

Availability: In stock

SKU

JA-191Y-LTE-4G

Partner Discount Customer Service Right of Withdrawal

Exemption from VAT Worldwide Shipping Helpdesk +31 207 372 372

Do you have a question about this product?

Ask Question

Details

Jablotron JA-191Y LTE 4G GSM communicator

If installed, it enhances data transmission reliability to the JABLOTRON CLOUD and to the Alarm Receiving Centre.

The communicator makes it possible:

to control the system through a voice menu;
to report events to a mobile phone (SMS and voice messages) directly from the control panel.

Technical specifications JA-191Y LTE

Module power supply	8–15 V DC (from the control panel)
Average current consumption	approx. 22 mA (depends on cellular network signal strength)
Peak current consumption	670 mA
GSM communication band:	2G (GSM, EDGE) 900/1800 MHz
	3G 900/2100 MHz (B8, B1)
	4G (LTE) 800/900/1800/2100/2600 MHz
	(B20, B8, B3, B1, B7)
I&HAS classification	Security grade 2/Environmental class II (according to EN 50131-1)
Dimensions	82 x 38 x 32 mm
Weight	29 g
Operational environment	indoor general
Operational temperature	-10 °C to 40 °C
Average operational humidity	75% RH, non-condensing
Compatible with RCT (ARC receiver)	According to communication protocols
SPT communicator type	SPT type Z (control panel expansion module)
AS/SPT interface	Pass-through

Reviews

Blog Posts (1)

The new Jablotron 100+

Product Questions 1

Product Questions

See all

I see that the module is compatible with a JK-101K, but is it also compatible with a JK-101KR (I assume the added R is simply for an additional radio module) ?

Question by: Olivier Saudan on Nov 28, 2022, 5:44 PM

Correct, the R stand for the Radio module (868KHz). With or without the radio module, it is compatible for both.

Regards

Answer by: FM Ligthart on Nov 29, 2022, 10:55 AM
