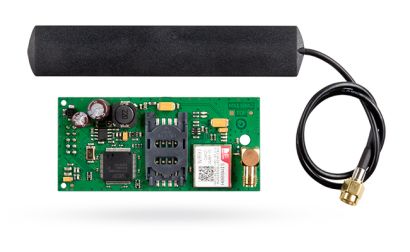

Jablotron JA-190Y GSM communicator

The Jablotron JA-190Y GSM communicator module is designed for the JA-100K and JA-100KR alarm control panels.

It serves as a backup and extension of the LAN communicator.

Availability: In stock
SKU
JA-190Y

Exemption from VAT

Read the REVIEWS

Worldwide SHIPPING

Right of WITHDRAWAL

HelpDesk +31 20 7372 372
Mon to Sat 09:00 - 22:00

JA-190Y GSM communicator module

If installed, it enhances data transmission reliability to the JABLOTRON CLOUD and to the Alarm Receiving Centre.

The communicator makes it possible:

  • to control the system through a voice menu;
  • to report events to a mobile phone (SMS and voice messages) directly from the control panel.


Technical specifications JA-190Y

Module power supply 12 V DC (from the control panel)
Average current consumption: approx. 40 mA
(depending on the GSM signal strength) Peak current consumption 750 mA
Working range of the GSM module QUAD-BAND, 850/900/1800/1900MHz
Classification security class 2 according to EN 50131-1 +A1 ­+A2, EN 50131-3, EN 50131-10, EN 50136-1, EN 50136-2, ANSI SIA DC-09, T 031
Environment II. general indoor
Certification body Safe test
It also meets the requirements of EN 60950-1, ETSI EN 301 489-1, ETSI EN 301 489-7, EN 55022, EN 50130-4, ETSI EN 301 419-1 and EN 301 511
Caller's identification (CLIP) ETSI EN 300 089
Operation conditions VO-R/1 (CEPT/ECC/DEC/(04)06)
JA-190Y Manual EN
JA-190Y Manual EN (38.97 KB) Download
