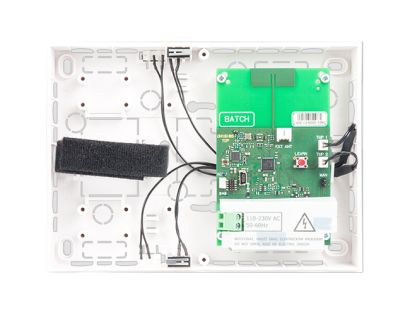

JA-150R One-way Signal Repeater

The Jablotron JA-150R One-Way signal repeater is designed to extend the communication distance and to increase transmission reliability in large installations.

It repeats the signal of all 'one-way' devices from JABLOTRON 100.

Availability: In stock
SKU
JA-150R

Exemption from VAT

Read the REVIEWS

Worldwide SHIPPING

Right of WITHDRAWAL

HelpDesk +31 20 7372 372
Mon to Sat 09:00 - 22:00

JA-150R One-way signal repeater for JA-100 wireless devices

It also supports non-addressable PG modules, one-way key fobs and JA-15xJ MS key fobs.

The product is a component of the JABLOTRON 100 system, is addressable and occupies one position in the system.

  • It allows you to choose which peripheral devices the signal should be repeated from
  • It is directly supplied by the mains and backed up by a battery
  • It supports the connection of an AN-868 external antenna


Supported peripheral devices:

  • Detectors of the JA-15x series
  • Detectors of the JA-18x series
  • Key fobs JA-154J MS, JA-152J MS, JA-164J, JA-162J
  • PG modules JA-150N, JA-151N


Specifications

Power supply 110 – 230 V AC/50 – 60 Hz, device of protective class I.
Internal consumption, typical/maximum approx. 0.5 W/1 W (at 230 V AC)
Backup battery NiCD 4.8V (BAT-4V8-N900) 900 mAh
Battery service life about 4 years
Radio communication 868.1 MHz
Communication range approx. 300 m (free terrain)
Antenna internal with the possibility to connect an external antenna, typ AN-868
Dimensions 132 x 182 x 45 mm
Classification security level 2, type B
in accordance with EN 50131-1, EN 50131-3, EN 50131-5-3
Environment II. indoor, general (in accordance with EN 50131-1)
Operating temperature range -10 °C to +40 °C
It also meets the requirements of ETSI EN 300 220, EN 50130-4, EN 55022, EN 60950-1
Operation conditions ERC REC 70-03
