Jablotron JA-111A Base BUS wired outdoor Siren

The Jablotron JA-111A Base BUS wired outdoor back-up siren is designed to sound alarms, chirps and PG output activation or deactivation.

Powered by the BUS connection.

Backup battery included.

Availability: In stock
SKU
JA-111A-Base-RB

Exemption from VAT

Read the REVIEWS

Worldwide SHIPPING

Right of WITHDRAWAL

HelpDesk +31 20 7372 372
Mon to Sat 09:00 - 22:00

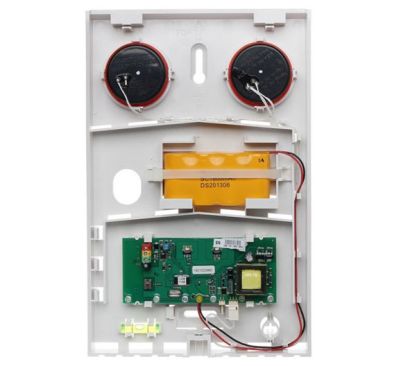

JA-111A RB bus external siren

Also has a power saving function when the power fails and also a built-in spirit level for accurate and easy placement during installation.

Addressable and occupies an alarm system in one position.


Specifications

Power 12 V bus (9 ... 15 V)
Current consumption in standby (quiescent) 5 mA
Current consumption for choice of cable 50 mA
Backup battery NiCd pack 4.8 V / 1800 mAh lifetime approx 3 years
Piezo electric siren 110 dB/m (when battery fully charged)
Dimensions 200 x 300 x 70 mm
Classification grade 2 according to EN 50131-1, EN 50131-4
Class IV environment. outdoor use, -25 to +60 ° C
Enclosure IP34D
Complies with EN 50130-4, EN 55022, EN 60950-1



JA-111A Base EN
JA-111A Base EN (127.29 KB) Download
