Hikvision DS-KH6320Y-WTE2 white Intercom Indoor Station, 2-wire

Hikvision DS-KH6320-WTE2 white 2-wire Video Intercom Indoor station with 7-Inch Touch Screen.

• 7-inch Colorful TFT LCD
• Wi-Fi 802.11b/g/n
• TF card, max 128GB
• Modular series

Availability: In stock

SKU

DS-KH6320Y-WTE2-White

Partner Discount Customer Service Right of Withdrawal

Exemption from VAT Worldwide Shipping Helpdesk +31 207 372 372

€195.00 €161.16

Do you have a question about this product?

Ask Question

Details

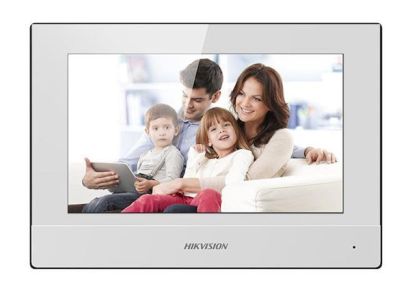

Hikvision DS-KH6320-WTE2 2-wire Intercom Indoor Station

The DS-KH6320-WTE2 is an indoor screen with a 7-inch color touchscreen. If a call is made from an outdoor station, it will be displayed on one or more indoor station(s) and if desired via the Hik-Connect App on your SmartPhone.

The live images of outposts and / or linked cameras can also be viewed and intercom calls are recorded on the internal SD card.

This indoor unit is PoE wired or can be connected via your wireless network and a separate 24V DC power supply.

Specifications DS-KH6320-WTE2

System Parameters
Processor basic frequency:		1 G
Operation System:		Embedded Linux Operation System
Flash:		16 MB (32 MB hardware compatibility)
Memory:		128MB
Audio Parameters
Volume:		Local or software control
Audio Input:		Built-in Omnidirectional Microphone
Audio Output:		Built-in Loudspeaker
Audio Compression Standard:		G.711 U
Audio Compression Rate:		64 Kbps
Audio Quality:		Noise Suppression and Echo Cancellation
Display Parameters
Display Screen:		7-Inch Colorful TFT LCD
Display Resolution:		1024 × 600
Operation Method:		Capacitive touch screen
Network Parameters
Wireless network:		Wi-Fi 802.11b/g/n
Network Protocol:		TCP/IP, SIP, RTSP
Device Interfaces
Power interface:		Two-wire interface
Relay Output:		2
Alarm Input:		8-ch alarm inputs
RS-485:		1
TF Card (micro SD card):		Support, Max. 128 GB
Network Interface:		Two-Wire Interface
Extended Application
IPC:		Support
Indoor call elevator:		Support
Mobile client:		Support
General
Power Supply:		Two-wire
Power Consumption:		≤6W
Working Humidity:		0% to 90%
Working Temperature:		-10 °C to 50 °C (-14 °F to 122 °F)
Dimensions(L × W × H):		200 mm × 140 mm × 15.1 mm (7.87" × 5.51" × 0.59")
