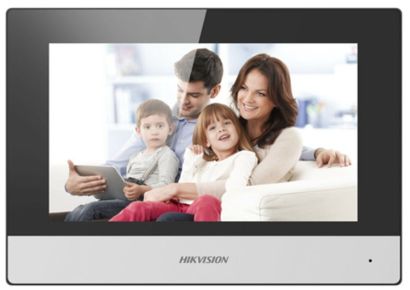

Hikvision DS-KH6320-WTE1 Intercom Indoor Station

Hikvision DS-KH6320-WTE1 Video Intercom Indoor station with 7-Inch Touch Screen.

• 7-inch Colorful TFT LCD
• Wi-Fi 802.11b/g/n
• Standard PoE/ 12 VDC
• TF card, max 32GB
• modular series

Availability: In stock

SKU

DS-KH6320-WTE1

Partner Discount Customer Service Right of Withdrawal

Exemption from VAT Worldwide Shipping Helpdesk +31 207 372 372

€184.00 €152.07

Do you have a question about this product?

Ask Question

Details

Hikvision DS-KH6320-WTE1 Intercom Indoor Station

The DS-KH6320-WTE1 is an indoor screen with a 7-inch color touchscreen. If a call is made from an outdoor station, it will be displayed on one or more indoor station(s) and if desired via the Hik-Connect App on your SmartPhone.

The live images of outposts and / or linked cameras can also be viewed and intercom calls are recorded on the internal SD card. This indoor unit is PoE wired or can be connected via your wireless network and a separate 12VDC power supply.

Specifications DS-KH6320-WTE

Display Parameters
Display Screen:	7-Inch Colorful TFT LCD
Display Resolution:	1024 × 600
Operation Method:	Capacitive touch screen
Audio Parameters
Audio Input:	Built-in Omnidirectional Microphone
Audio Output:	Built-in Loudspeaker
Audio Compression Standard:	G.711 U
Audio Compression Rate:	64 Kbps
Audio Quality:	Noise Suppression and Echo Cancellation
Network Parameters
Wired network:	10/100 Mbps self-adaptive network
Wireless network:	Wi-Fi 802.11b/g/n
Network Protocol:	TCP/IP, SIP, RTSP
Network interface:	1 RJ-45 10/100 Mbps self-adaptive
Device Interfaces
Relay Output:	2
Alarm Input:	8-ch alarm inputs
RS-485:	1
TF Card (micro SD card):	Max to 32 G, SD 2.0 or lower version
General
Power Supply:	IEEE802.3af standard PoE, 12 VDC/1A
Power Consumption:	≤6W
Working Temperature:	-10° C to + 55° C (14° F to 131° F)
Working Humidity:	10% to 90%
System Parameters
Operation System:	Embedded Linux Operation System
Flash:	32MB
Memory:	128MB
