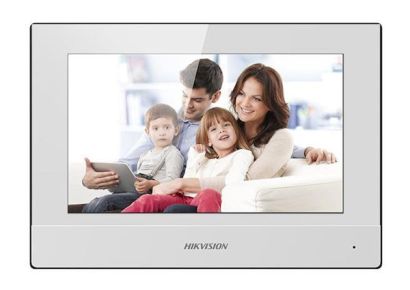

Hikvision DS-KH6320-WTE Intercom Indoor Station, white

Hikvision DS-KH6320-WTE white Video Intercom Indoor station with 7-Inch Touch Screen.

• 7-inch Colorful TFT LCD
• Wi-Fi 802.11b/g/n
• Standard PoE/ 12 VDC
• TF card, max 32GB
• modular series

Availability: In stock
SKU
DS-KH6320-WTE white
€195.00 €161.16

Exemption from VAT

Read the REVIEWS

Worldwide SHIPPING

Right of WITHDRAWAL

HelpDesk +31 20 7372 372
Mon to Sat 09:00 - 22:00

Hikvision DS-KH6320-WTE Intercom Indoor Station

The DS-KH6320-WTE1 is an indoor screen with a 7-inch color touchscreen. If a call is made from an outdoor station, it will be displayed on one or more indoor station(s) and if desired via the Hik-Connect App on your SmartPhone.

The live images of outposts and / or linked cameras can also be viewed and intercom calls are recorded on the internal SD card. This indoor unit is PoE wired or can be connected via your wireless network and a separate 12VDC power supply.


Specifications DS-KH6320-WTE

Display Parameters
Display Screen: 7-Inch Colorful TFT LCD
Display Resolution: 1024 × 600
Operation Method: Capacitive touch screen
Audio Parameters
Audio Input: Built-in Omnidirectional Microphone
Audio Output: Built-in Loudspeaker
Audio Compression Standard: G.711 U
Audio Compression Rate: 64 Kbps
Audio Quality: Noise Suppression and Echo Cancellation
Network Parameters
Wired network: 10/100 Mbps self-adaptive network
Wireless network: Wi-Fi 802.11b/g/n
Network Protocol: TCP/IP, SIP, RTSP
Network interface: 1 RJ-45 10/100 Mbps self-adaptive
Device Interfaces
Relay Output: 2
Alarm Input: 8-ch alarm inputs
RS-485: 1
TF Card (micro SD card): Max to 32 G, SD 2.0 or lower version
General
Power Supply: IEEE802.3af standard PoE, 12 VDC/1A
Power Consumption: ≤6W
Working Temperature: -10° C to + 55° C (14° F to 131° F)
Working Humidity: 10% to 90%
System Parameters
Operation System: Embedded Linux Operation System
Flash: 32MB
Memory: 128MB
DS-KH6320-WTE1_Indoor_Station_Datasheet_V1.0_20190116.PDF
DS-KH6320-WTE1_Indoor_Station_Datasheet_V1.0_20190116.PDF (2.15 MB) Download
UD12914B_Baseline_Video_Intercom_Indoor_Station_(6320)_Installation_Guide_V2.0.2(1).PDF
UD12914B_Baseline_Video_Intercom_Indoor_Station_(6320)_Installation_Guide_V2.0.2(1).PDF (967.15 KB) Download
