Conas ML3502L double Electromagnet + LED

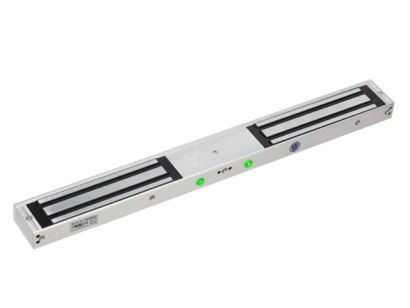

Conas ML3502L Surface mounted electromagnet

The ML3502L is an electric magnet with a holding force of 350kg. The magnet must be mounted on a frame. The connection can be both 12V DC and 24V DC. The magnet is active during voltage. The magnet has an LED on the front with which you can check the status of the magnet. When the magnet is active and closed, it will be yellow / green. When the door is unlocked the LED will be shown red.

The ML3502L consists of a magnet of 570 x 55 x 27.5 mm (L x W x H), with two steel plates to be fixed on the doors. The steel plates have the following dimensions: 190 x 45 x 11mm. The plates are beautifully finished and can easily be mounted using the accompanying manual and drilling templates.

Specifications ML3502L

 • Magnet: 570 x 55 x 27.5 mm
 • Steel plate: 190 x 45 x 11mm
 • Led Indication: Yes
 • Status Output: Yes
 • Weather-Resistant: No
 • Voltage: 12V / 24V
 • Holding Force: 350Kg
