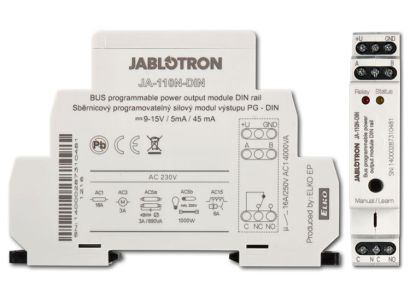

Jablotron JA-110N-DIN Bus PG-DIN Relais module (max 16A, 250V AC / 24V DC)
De JA-110N-DIN BUS bedraad relais module heeft een DIN-rail montage. De PG uitgangen van de centrale sturen de relais switch.
Geschikt om apparaten te schakelen (max 8A, 250V AC / 24V DC).
Beschikbaarheid: Op voorraad
JA-110N-DIN Bus bedraad PG-DIN uitgangsrelais voedingsmodule
Wordt aangesloten en gevoed door de BUS. De PG uitgangen van de centrale sturen de relais switch.
Moet ingeleerd worden in het systeem en bezet één geheugenplaats (zone).
Specificaties JA-110N-DIN Bus
Power |
12 V bus (9 ... 15 V) |
Current consumption during backup (relay open / closed) |
5 mA / 45 mA |
Current consumption for cable choice |
45 mA |
Rating relay (electrically isolated) - Class II: |
Maximum switching voltage |
250 V AC / 24V DC |
Resistive load (PF = 1) |
max.16A |
Inductive, capacitive load (PF = 0.4) max |
8A |
Halogen lighting max |
1000 W |
DC |
384 W |
Minimum DC switching power |
0.5W |
Twisted wires |
2 x 1.5 mm2 max 1 x 2.5 mm2 |
Dimensions |
18 x 90 x 64 mm |
Environment |
general indoor |
Operating temperature range |
-10 to + 40 ° C |
Housing |
IP-20 |
Complies with |
EN 50130-4, EN 55022, EN 60950-1 DIN rail EN60715 |
