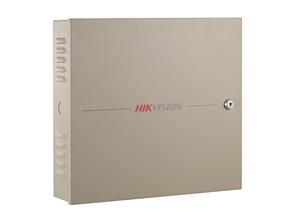

Hikvision DS-K2604T Pro Complete Access Network Controller, 4 doors
The DS-K2604T access network controller from Hikvision for 4 doors.
The access control from the Pro Complete series supports cards, codes, QR codes, fingerprints and by mid-2018 also facial recognition and license plates.
Hikvision access control combines all disciplines into one VMS, one software package!
In addition to video and intercom, this addition also allows access control. The choice of space for door controllers, card readers, fingerprint scanners and other innovation equipment make it a very satisfactory solution. You can configure groups of users and log-in data, access cards and codes. Hikvision access control from the Pro Complete series supports cards, codes, QR codes, fingerprints and by mid-2018 also facial recognition and license plates.
The DS-K2600 series access controller is designed with the latest TCP / IP and RS485 communication interface. The communication data is encrypted to improve the security of the system. The controller also supports offline operation and is designed with tamper switch.
Door controllers from the DS-K2600 series support smart functions such as anti-passback and first pass. For example, anti-passback prevents a card from being used by two people because the card must first be used to exit the zone before the zone can be accessed again.
Anti-passback can be set over the system, even if this has to be applied to a combination of door controllers, even if the software is not running and the door controller is not connected to the network.
Presence functions ensure that you can see how long employees have been in the building. When you add the hourly rate, the system immediately informs you of the costs. Overtime and absence can also easily be filtered.
You can load a map to easily see where the controller is and click on the corresponding camera. Link the cameras with events so that there are video pop-ups with live images. You can look back at this right away.
Compare the K2800 series with the K2600 series
|Power supply lock||x||✓|
|First Card / Super Card||✓||✓|
|Memory (cards - events)||50.000 - 50.000||100.000 - 300.000|
100,000 (200,000 expandable)
access control events :
300,000 (600,000 expandable)
|Output Interface:||Door Switch Relay×4, Alarm Relay×4|
|Uplink Communication Interface:||TCP/IP Network Interface and RS-485 Interface|
|Input Interface:||Alarm Input×4,
|Downlink Communication Interface:||RS-485 and Wiegand (w26/w34)|
|Accessible Card Reader:||8 Card Readers (RS485 Interface) and 4 Card Readers (Wiegand Interface) Connectable|
|Working Voltage:||DC 12V/1A|
|Power Dissipation (with Load):||≤100W|
|LED Indicator:||Power Supply Status, Communication Status, Working Status|
|Working Humidity:||10% to 90% (Non-Condensing)|
|Working Temperature :||-20°C to +65°C (-4°F to +149°F)|
|Dimensions (L×W×H):||370x345x90mm (14.6x13.6x3.5")|
