Hikvision DS-K1104MK Vandal-proof Card Reader with Keypad MiFare

The DS-K1104MK is a vandal-proof card reader from the access control line of Hikvision.

The card reader can read MiFare cards and be connected to Hikvision's Basic+ and Pro Complete door controllers.

Verfügbarkeit: Auf Lager
SKU
DS-K1104MK
175,00 € 144,63 €

Befreiung von der MwSt.

Weltweiter VERSAND

HelpDesk +31 20 7372 372
Mo bis Sa 09:00 - 22:00

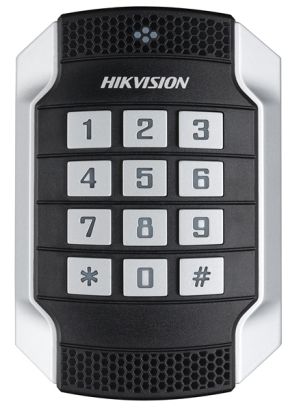

Hikvision DS-K1104MK Vandal-proof Card Reader

The DS-K1104MK is a vandal-proof card reader from the access control line of Hikvision. The card reader can be connected via RS-485 or Wiegand.

The beautifully designed card reader can be used both indoors and outdoors. The card reader can read MiFare cards and be connected to Hikvision's Basic+ and Pro Complete door controllers.


Specifications DS-K1104MK

System Parameters
ID Settings: Setting by the DIP Switch on the Main Board
Card Reading Frequency: 13.56MHz
Card Reading Distance: ≤50mm (≤1.97")
Processor: 32-bit
General
Key Board: No Keypad (DS-K1104M)
Keypad with 12 Keys (0 to 9, *, #) (DS-K1104MK)
Audio Alert: Beeper
Working Current: ≤500mA
Power Supply: 12VDC
Power Consumption: ≤2W
LED Indicator: Power Indicator; Status LED Indicator
Installation: Applied for 86 & 120 Gang Box
Protection Level: IP 65
Certification: CE, FCC
Working Humidity: 10% to 90% (Non-Condensing)
Working Temperature : -20°C to +65°C (-4°F to +149°F)
Dimensions (L×W×H): 118mm × 76mm × 23mm (4.65'' × 2.99'' × 0.91")
Weight: ≤ 0.52Kg

Produktfragen

Noch keine Fragen. Seien Sie der Erste, der die Frage stellt!
Hikvision DS-K1104 Series User Manual.pdf
Hikvision DS-K1104 Series User Manual.pdf (664.55 KB) Herunterladen
Hikvision DS-K1104 Series Datasheet.pdf
Hikvision DS-K1104 Series Datasheet.pdf (351.79 KB) Herunterladen
