Hikvision DS-K1108AM Card Reader MiFare

The DS-K1108AM is a card reader from the access control line of Hikvision.

The card reader can read MiFare cards and be connected to Hikvision's Basic+ and Pro Complete door controllers.

Verfügbarkeit: Auf Lager
SKU
DS-K1108AM
52,00 € 42,98 €

Befreiung von der MwSt.

Weltweiter VERSAND

HelpDesk +31 20 7372 372
Mo bis Sa 09:00 - 22:00

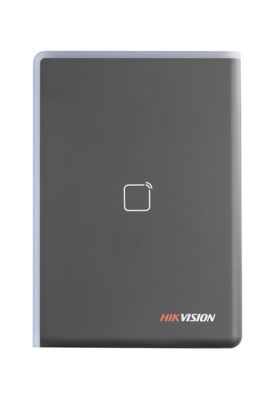

Hikvision DS-K1108AM Card Reader MiFare

The DS-K1108AM is a card reader from the access control line of Hikvision. The card reader can be connected via RS-485 or Wiegand.

The beautifully designed card reader can be used both indoors and outdoors. The card reader can read MiFare cards and be connected to Hikvision's Basic+ and Pro Complete door controllers.


EM vs MiFare

Hikvision supplies card readers with the possibility to read EM or MiFare. This choice is in the reader and can not be adjusted software-wise. MiFare has a heavier encryption. If other EM solutions are already present, EM can also be selected.


Specifications DS-K1108AM

System Parameters
ID Settings: Setting by the DIP Switch on the Main Board
Card Reading Distance: EM Card: ≤100 mm (≤3.94") Mifare Card:≤50 mm (≤1.97")
Processor: 32-bit
Device Interfaces
Communication Mode: RS485/Wiegand( Set via DIP Switch)
General
Key Board: No Keypad (DS-K1108E and DS-K1108M)
Keypad with 12 Keys (0~9, *, #) (DS-K1108EK and DS-K1108MK)
Radio Frequency Standard: ISO 14443-A
Prompt: Buzzer
LED Indicator: Power Indicator; Status LED Indicator
Temper-Proof: Support
Installation: Wall Mounting with/without Gang Box
Protection Level: IP 65
Working Humidity: 10% to 90% (Non-Condensing)
Working Temperature : -20°C to +65°C (-4°F to +149°F)
Dimensions (L×W×H): 123mm × 88mm × 21mm (4.84" × 3.46" × 0.83")
