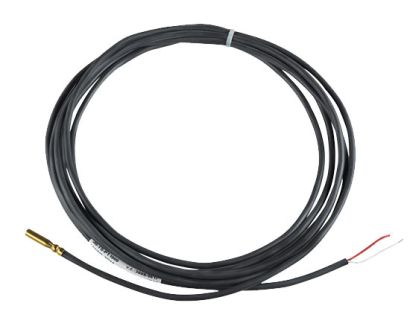

JB-TS-PT1000 Universele Temperatuur Sensor
Jablotron JB-TS-PT1000 Temperatuur sensor met een kabel voor de temperatuurmeting van gasvormige, vloeibare en vaste stoffen in het bereik van –50 °C tot +200 °C.
Kabel lengte: 3m
JB-TS-PT1000 Universal temperature sensor
Temperature sensor with a cable for the temperature measurement of gaseous, liquid and solid substances in the range of -50 °C to +200 °C.
It can be used as an external temperature sensor for the products: JB-EXT-TH-R and JB-EXT-TH-B.
Technical specifications JB-TS-PT1000
Measuring range | 50 °C to +200 °C |
---|---|
Ambient relative humidity | 10 % - 100 % |
Atmospheric pressure | 70 to 106 k PA |
Housing diameter | 4.6 ± 0.1 mm |
Housing length | 24 mm |
Electrical strength | 500 VAC according to EN 60730-1 |
Insulation resistance | > 200 MΩ at 500 VDC, 25° ± 3°C |
Type and length of the supply cable | Silicone, unshielded, 2 x 0.22 mm2; 3m |
Ingress protection class of the sensor | IP 68 (h 1m according to EN 60 529) |
