DSC TL280LE-EU Dual-Path dialer, LAN and GSM
DSC TL2803G-EU Dual-Path dialer with LAN and GSM (HSPA).
DSC TL2803G-EU Dual-Path dialer with LAN and GSM

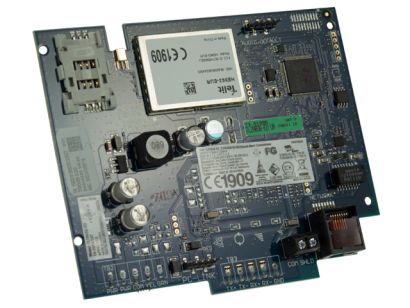

The DSC TL280LE-EU is a dual path internet and cellular communicator that can be used to send alarm signals from your DSC NEO system to a monitoring station.
This dual path communicator sends alarm signals via the 4G LTE network, so that your alarms are sent to the control center at lightning speed. It also uses sending signals over the internet to provide your alarm system with a redundant form of communication. The TL280LE-EU uses 128-bit AES encryption to ensure that the signals from your DSC NEO control panel, via the mobile network or the internet, cannot be intercepted or manipulated. The TL280LE-EU also features a monitored heartbeat for both the mobile and internet paths that can monitor the operational status of the mobile and internet communicator. The internet communication part cannot be used alone and must have a C24 cellular account in order to be used.
This connects to your DSC NEO via a supplied PCLink cable. It is installed in the main cabinet. The supplied antenna sticks out of the hole in your alarm box. You can also mount this cellular communicator remotely using a PCL-422 Remote Mount Module. The TL280LE-EU also has LED status lights on board that allow you to check the signal strength and troubleshoot any problems.
PowerSeries Neo Go app
The TL2803G-EU supports the PowerSeries Neo Go mobile phone application. This app can be downloaded for IOS and Android devices. With the PowerSeries Neo Go App you can, among other things, see zone statuses, bypass zones, control outputs, arm system and partitions, etc. You can indicate in the App as well as in the programming whether you are using GPRS or LAN, or a combination of both. want to communicate.
This app can send you Push Messages in case of a notification. You can think of switching on or off, malfunction, alarm, etc.
Specifications DSC TL280LE-EU
- Backup and primary IP and GSM communication, dual-path
- Support for up and download or distance over GSM and IP
- Supervision polling via GSM and IP
- 128-bit AES data encryption via GSM and IP
- Full event reporting
- Support for SIA and ContactID protocol
- Status display for signal range and faults
- Video verification over GSM and IP
- Operation and reporting by SMS
- Dimensions: 150 x 100 x 15 mm
- Power consumption: 120 mA
- Weight: 310 grams
- Operating temperature: 5deg; C to + 40deg; C
DSC TL2803G-EU compatibility
This product is suitable for all PowerSeries NEO panels. This product is compatible with Sur-Gard System I-IP / II / III / IV / 5 alarm receivers. (SG-System 5 is required for video verification)
