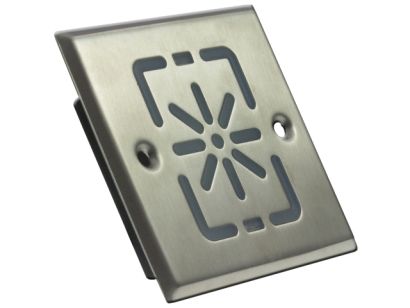

Conas ACR-21ER Card Reader - blue leds, stainless steel

The Conas ACR-21ER series is a powerful RFID reader.

The user can login with RFID card.

Size: 86 x 86 x 30,8 mm (LxBxH)

Verfügbarkeit: Auf Lager
Artikelnummer
ACR-21ER
159,00 € 131,40 €
Haben Sie eine Frage zu diesem Produkt?
Frank

Conas card reader stainless steel, EM

The ACR-21E series is a powerful RFID reader. The user can log on with an RFID card. The ACR-21E series readers are for use with AC-150, AC-150NET, AC-150WEB, AC-160, AC-160NET, AC-170 and AC-170NET systems. This model has a small profile design of less than 16 mm and can read all 26-bit Mifare cards from Conas!

The powerful built-in RFID reader offers a reading distance of up to 10 centimetres, a built-in buzzer for indoor or outdoor installation including bicolour LEDs and a buzzer for feedback signals. All Conas readers offer excellent reliability, long read ranges, low power consumption and are housed in an easy-to-install package.

With every reader, we provide a clear manual to make installation easy. The manual includes a quick electrical diagram and a number of useful specifications for during installation.

Please note during installation that metal surfaces or mounting near other proximity readers may affect the effective reading range. The cable exits the reader in the middle of the back. This makes the installation very precise.

For a reader with Mifare Card support, we recommend the ACR-21M series!

ACR-21ER Specifications:

  • Voltage range: 9V DC ~ 14V DC. 12V DC is recommended
  • Two color LED and an integral speaker for programming and during use
  • Sleek and attractive and weather-resistant design
  • Output format: standard International Wiegand 26Bit (34Bit is optional)!
  • ID reader supports Mifare One cards.
  • Max. reading distance 10 cm
  • Hidden mounting screws counter vandalism


Technical specifications:

  • Reader type: ID reader
  • Card type: EM-marin cards
  • Output format: Standard international Wiegand 26Bit (34Bit is optional!)
  • Reading distance: 10 centimeters
  • Frequency: 125KHz
  • Max. distance between cable and reader: 100 meters
  • Design: Epoxy covered. Fully enclosed in a robust polycarbonate housing. Suitable for harsh environments.
  • Audio / visual: Two color LED indicators, built-in buzzer
  • Environment specifications: Indoor and outdoor use, IP65
  • Humidity operation: Non-condensing


Physical specifications:

  • Housing color: stainless steel
  • Dimensions: 86 x 86 x 30.8 mm
  • Weight: 240g


Electrical specifications:

  • Voltage range: 9V DC -14V DC. 12V DC is recommended!
  • Power consumption: 90mA
