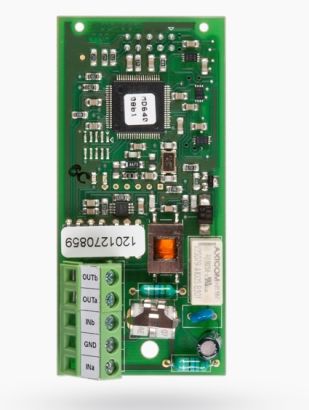

A control panel with this module connected to a phone line transmits alarm voice messages,communicates with ARCs and allows remote access. The communicator uses tone dialing and features basic surge protection.
Specifications
Dialing method
DTMF
Line presence detection
optional parameter
Number of dialed numbers for voice messages with JA-101K
8
Number of dialed numbers for voice messages with JA-106K
15
Digital transmission to ARC
CID, SIA protocol
EN 50131-1 security grade
2
Class of transmission system - voice communication
ATS 2
Class of transmission system - digital communication
ATS 4
Environment - class
II (-10 ° C to +40 ° C)
Connection
Analogue interface in accordance with EN 301 437, TBR 21
